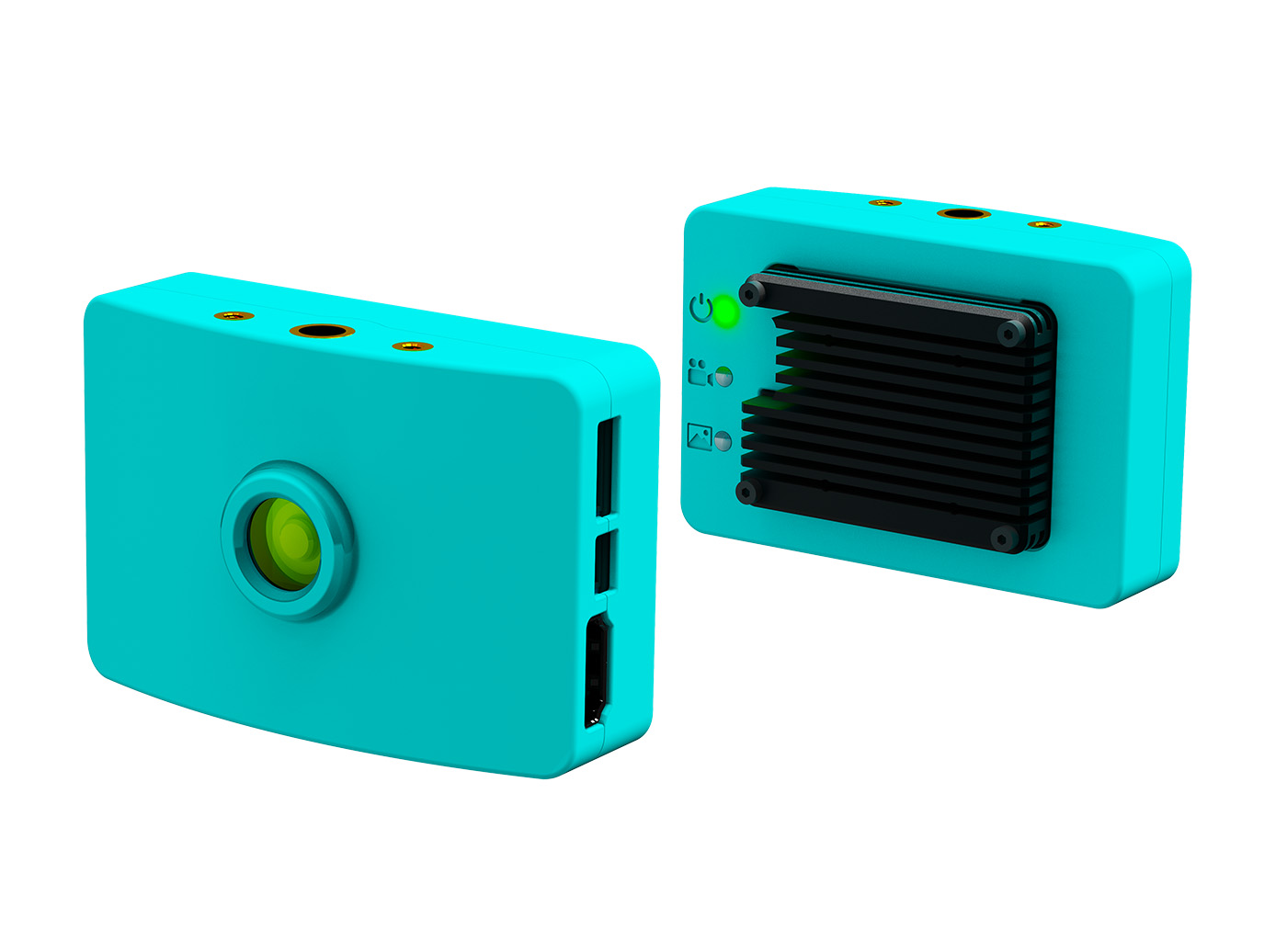

AITRIOS Workmate Cam
A Low-Cost Mono Camera for Edge AI
The Hellbender AITRIOS Workmate Camera is designed as a compact edge device for many applications. This module provides integration of an RTC clock and integrated IMU. It also has HDMI, RS-485 and ethernet outputs. The Raspberry Pi CM4 general-purpose processor handles all general computing tasks such as data sharing, networking, wireless connectivity, or data aggregation. The Sony Aitrios powered IMX500 camera implements AI models on-chip consuming none of the general purpose CPU capability.
Designed and assembled in the USA
Specifications
| Processing | Raspberry Pi CM4 SOM Quad Core ARM A72 @ 1.8GHz Raspberry Pi RP2350A microcontroller Dual Cortex M33 @ 150MHz |
| Power | 12VDC nominal, range from 10.0 – 36.0 VDC via Main Connector. |
| Wireless Network | (Via CM4) Wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac Bluetooth 5.0 |
| Miscellaneous | EEPROM (8 Kbit) onboard, programmable by I2C IMU onboard – TDK IIM-42652 Temperature, Pressure, Relative Humidity – Bosch BME-280 Passively cooled housing for ruggedness and durability |
| Inputs/Outputs | 2x USB-C Ports (USB 2.0 speeds) Ethernet (via board level connector) Micro HDMI for display out GPIO pins to drive active high or active low (emulate PNP/NPN), PWM, LED driver, or relays Onboard RS-485 chip for direct serial communication 1x 4-lane MIPI CSI for imager input 1x 2-lane MIPI CSI for imager input (used by IMX500) |
| Software | Comes with a default software image supported by REST API RTSP video stream can be configured |
| Environment | Recommended operating temperature -20 to 65° C |
| AI Camera | Raspberry Pi AI Camera – Sony IMX500 (1/2.3” sensor size) Integrated low-power inference accelerator Compatible with custom models from TensorFlow Pre-loaded with MobileNet machine vision model 76° FoV |
| Optional Accessories | An additional imager can be added upon request Housing can be customized upon request |
Feature Diagram
Dimensional Drawing
