Delta Power Hub & Ethernet Switch
$1,900.00
Out of stock
Managed High-Capacity PoE Switch & Power Hub with PTP Time Sync

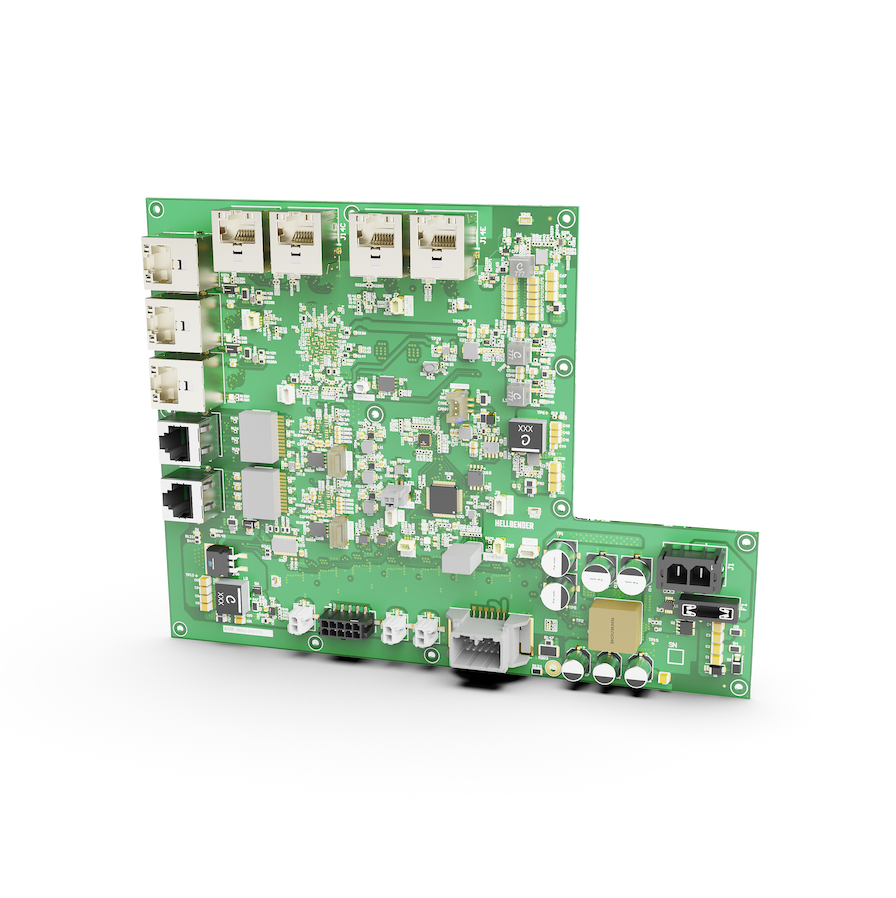

The Hellbender Delta is a managed Ethernet switch designed to simplify time-synchronized sensor integration. It combines high-bandwidth networking, power over Ethernet, regulated power outputs, and time synchronization in a single board, simplifying system architectures from prototypes to deployments.
Key features include:
- 2x 10GbE and 7x 2.5GbE ports for integrating sensor-dense systems that require high-bandwidth networking
- IEEE 1588 PTP compatibility, configurable via REST API, for precise time synchronization across multi-sensor systems
- Regulated power outputs – 2x 12V and 5x 24V – for sensors powered by separate power inputs
Designed and manufactured in Pittsburgh PA, USA
Coming Q1 2027
Specifications
| Dimensions | 218 mm x 165 mm |
| Power Input | 10 – 36 VDC (15A Max) |
| Power Output | 2x 12V (Regulated, switched, and current protected) 5x 24V (Regulated, switched, and current protected) 3x PoE+ (see Networking) |
| Compute | STM32 Microcontroller |
| Networking | 1x 10 GbE 1x 10 GbE PoE+ 2x 2.5 GbE PoE+ 5x 2.5 GbE |
| Communications | 1x CAN 1x I2C 1x PPS Input |
| Mechanical Interface | 13x M2.5 Mounting Holes |
| Accessories | Environmental Sensor |
| Configuration | VLAN and PTP configurable via REST API |
| Environment | Recommended operating temperature -30 to 60°C |
