Ferry Ethernet Converter
$450.00
Out of stock
Automotive Ethernet Media Converter: 100/1000BASE-T to BASE-T1

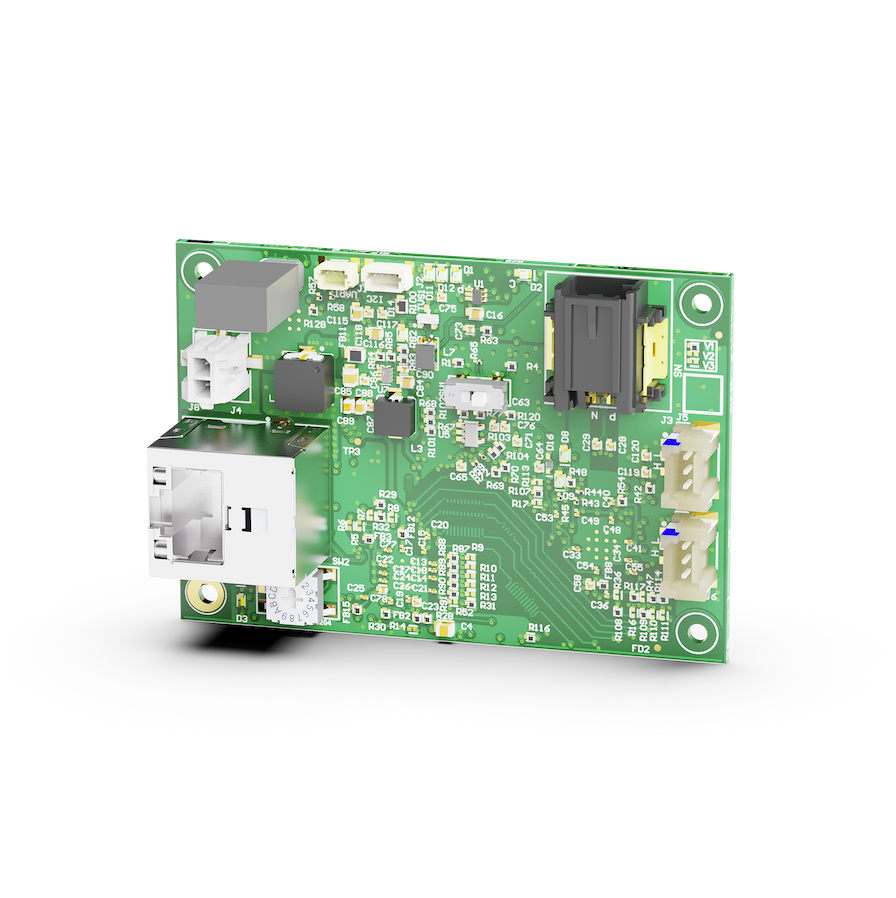

The Hellbender Ferry bridges standard (BASE-T) and automotive (BASE-T1) Ethernet networks at 100 or 1000 Mb/s. It connects off-the-shelf compute and switching gear directly to automotive-grade sensors and cameras, removing the need for custom cables and adapters and maintaining flexibility in system architecture design.
Key features include:
- 100/1000BASE-T to 100/1000BASE-T1 conversion, so sensor selection isn’t limited by link speed
- Wide 10–65 VDC power input for compatibility with a wide array of vehicle and robotic systems
- Onboard STM32 microcontroller, configurable over CAN and I2C, for easy development and integration
Designed and assembled in Pittsburgh PA, USA
Coming Q1 2027
Specifications
| Dimensions | 77 mm x 53.5 mm |
| Power Input | 10 – 65 VDC |
| Compute | STM32 Microcontroller |
| Networking | 1x 100BASE-T or 1000BASE-T 1x 100BASE-T1 or 1000BASE-T1 |
| Communications | 2x CAN 1x I2C (Qwiic Connect) |
| Mechanical Interface | 4x M2.5 Mounting Holes |
| Configuration | Network speed configurable via CAN |
| Environment | Recommended operating temperature -30 to 60°C |
