Helm NVIDIA Thor Carrier
$2,700.00
Out of stock

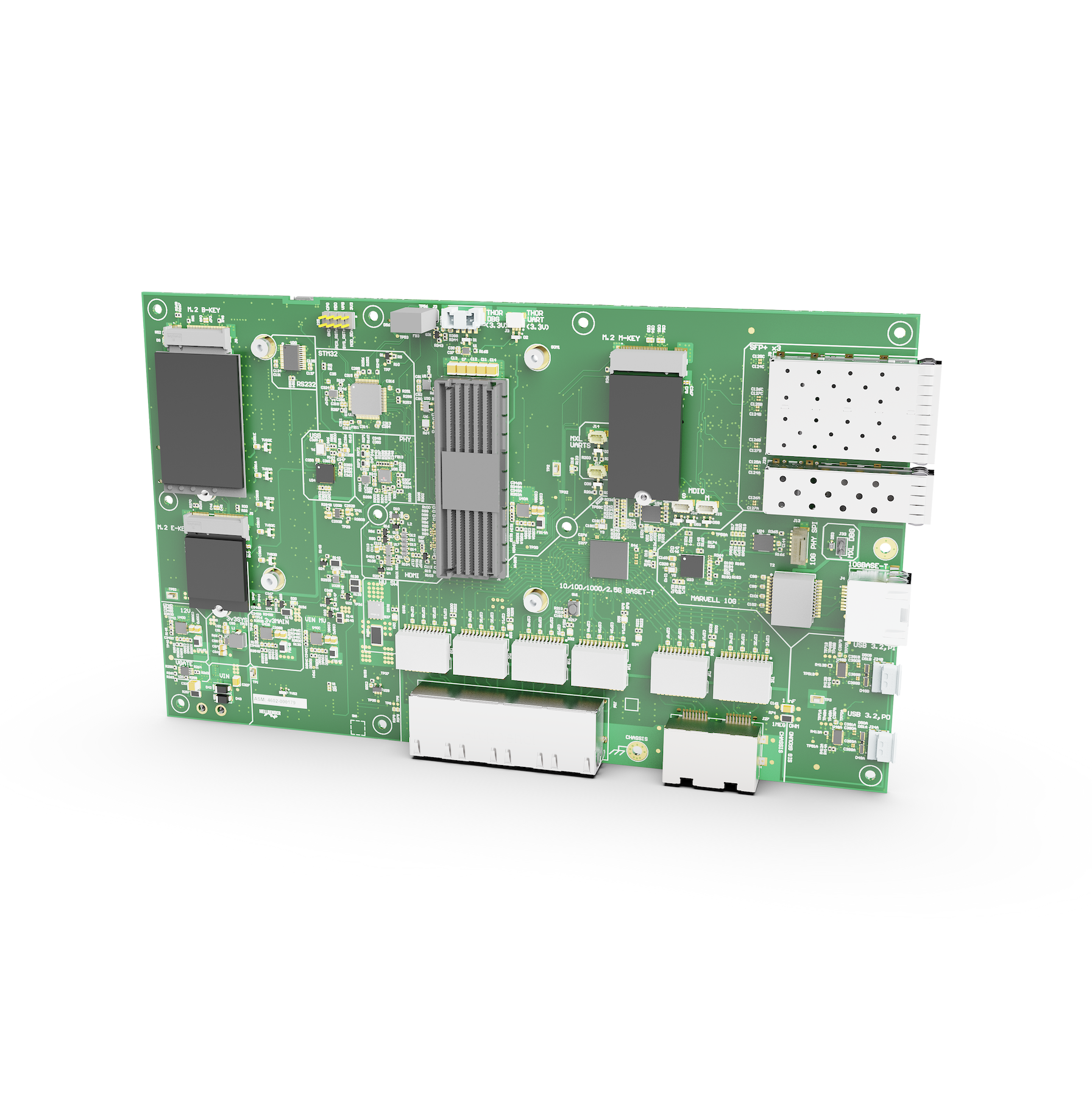

NVIDIA Thor Carrier Board with 55 Gb/s Ethernet & Full I/O
The Hellbender Helm is a fully featured carrier board for the NVIDIA Jetson AGX Thor platform, exposing high-bandwidth networking, CAN, USB, RS-232 and more for effortless system integration.
Key features include:
- 55 Gb/s total networking bandwidth across 10 ports for maximal sensor input with minimal external hardware
- CAN, RS-232, USB-C 3.2, and three M.2 slots for flexible sensor and radio expansion
- Onboard 6-axis IMU, environmental sensor, and battery-backed RTC for robust autonomy deployments
- Dual fan control with PWM, tach, and power sensing for active thermal management
- Compatibility with Hellbender’s Sluice power supply board for insulated, uninterruptible power
Compatible with NVIDIA Jetson AGX Thor T4000 and T5000 modules (module not included).
Designed and manufactured in Pittsburgh PA, USA.
Coming Q1 2027
Specifications
| Dimensions | 250 mm x 150 mm |
| Power Input | 14 – 19.5 VDC If not powering via Sluice, regulated 18V input is highly recommended |
| Compute | NVIDIA Jetson Thor T4000/T5000 Compatible (module not included) STM32 Microcontroller |
| Networking | 3x 10 GbE SFP+ 1x RJ45: 10 GbE 6x RJ45: 2.5 GbE |
| Communications | 5x CAN (4x Thor, 1x STM32) 2x RS-232 2x USB-C 3.2 1x PCIe Gen 4: M Key (NVMe) 2x PCIe Gen 3: B Key (LTE), E Key (WiFi) 1x HDMI 1x TAG (STM32) 2x Debug GPIO (Thor) 1x UART (Thor) |
| Mechanical Interface | 10x M3 Mounting Holes 4x 4mm Standoff for Thor |
| Sensors & Accessories | 2x Fan Control (PWM, Tach, and Power) 6-axis IMU (IM42652) Environmental Sensor (BME280) Battery Backup for Thor RTC |
| Wireless Network | Configurable based on B & E M.2 selection |
| Software | NVIDIA JetPack 7.0 Thor configuration and power management via STM32 |
| Environment | Recommended operating temperature -30 to 60°C |
