Power Regulation and Distribution Board with 9–36V Input and 900W Output

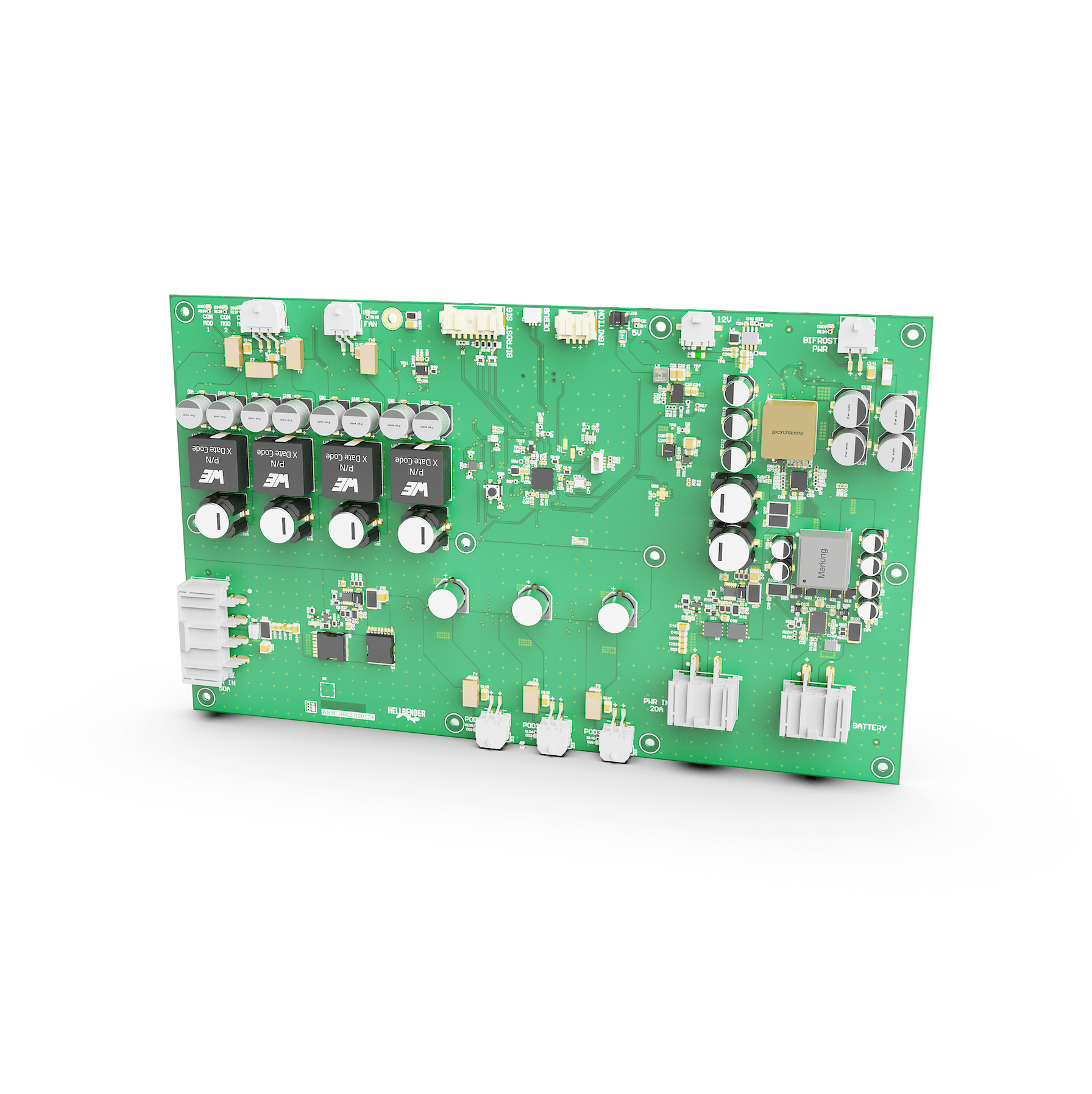

The Hellbender Sluice is a configurable power regulation and distribution board that consolidates power management for an entire autonomy stack. It turns a single 9–36 VDC input into ten controlled outputs totaling up to 900W, with a battery connection that can insulate mission-critical compute from unreliable system power.
Key features include:
- Wide 9–36 VDC input for integration into a wide range of systems
- Ten controlled outputs – 1x 5V, 1x 12V, 1x 18V, 4x 24V, and 3x protected, switched passthroughs – for system level power in a single board
- Regulated 18V @ 10A output with a battery connection for optional uninterruptible power to system compute
- Onboard RP2350 microcontroller, configurable over USB 2.0, to adjust output behavior without hardware changes
Designed and manufactured in Pittsburgh PA, USA
Coming Q1 2027
Specifications
| Dimensions | 250 mm x 150 mm |
| Power Input | 9 – 36 VDC, 900W Max |
| Power Output | 1x 18V @ 10A (Thor Carrier, regulated; includes connector to optional external battery for uninterruptible power supply) 3x Protected and Switched Passthrough Power 4x 24V @ 5A Max 1x 12V @ 1A Max 1x 5V @ 1A Max |
| Compute | Raspberry Pi RP2350A |
| Communications | 1x UART 1x USB 2.0 |
| Mechanical Interface | 11x M3 Mounting Holes |
| Configuration | Configurable power management, RP2350A accessible via USB 2.0 |
| Environment | Recommended operating temperature -30 to 60°C |
