Stereo Camera
$849.00
Stereo Camera with Built-In AI Accelerator
The Hellbender Stereo Camera is designed to be a general purpose fully user programmable, depth perception sensor supporting industrial and field robotic applications.
Key features include gigabit power over ethernet, NIR flood illumination, NIR pattern projection, internal user programmable quad core A72 ARM processor and Hailo-8 AI accelerator with 26 TOPS capability, time synchronized on-board IMU for VINS applications, Temperature, Pressure, and Relative Humidity sensors. Options include 12VDC pass through power supply.
Designed and assembled in the USA
All Products are Pre-orders only
Products are expected to ship by late summer. For quantities great than 50, please Contact Us. Warranty & Returns.
Coming Soon on Crowd Supply.
Specifications
| CPU Interface | Mechanical – standard Raspberry Pi CM4 high density connectors. Software – Yocto Linux Build available over Ethernet, Hailo-8 support through Hailo developer portal. |
| Power | POE 802 class < 15W (36Vdc – 50Vdc input option) Auto-Power-Up on application of power |
| Wireless Network | 1x Gigabit Ethernet, RJ45 |
| Optical | Baseline 140mm Camera FOV Options • CIL227: 129°H x 78°V x 155°D, IP67 Fisheye • CIL234: 98°H x 60°V x 118°D, IP67 Wide Angle • CIL043: 67°H x 45°V x 76°D, IP67 Low Distortion |
| Accessories | 850nm Flood Illumination (EGA2000-850-UW) FOV: 104°H x 84°V 940nm Pattern Projector (BELAGO1.1) FOV: 78°H x 61°H |
| Miscellaneous | Onboard EEPROM (8kbit), programmable by I2C RTC backup coin-cell – 4.8mm diameter 3V 1.5mAh coin cell 6-axis IMU (3-axis accelerometer, 3 axis gyroscope), 20,000g shock tolerant Temperature, Pressure, & Relative Humidity |
| Environment | IP54 Assembly Recommended operating temperature -20 to 65°C |
Hellbender products trusted by:
Block Diagram

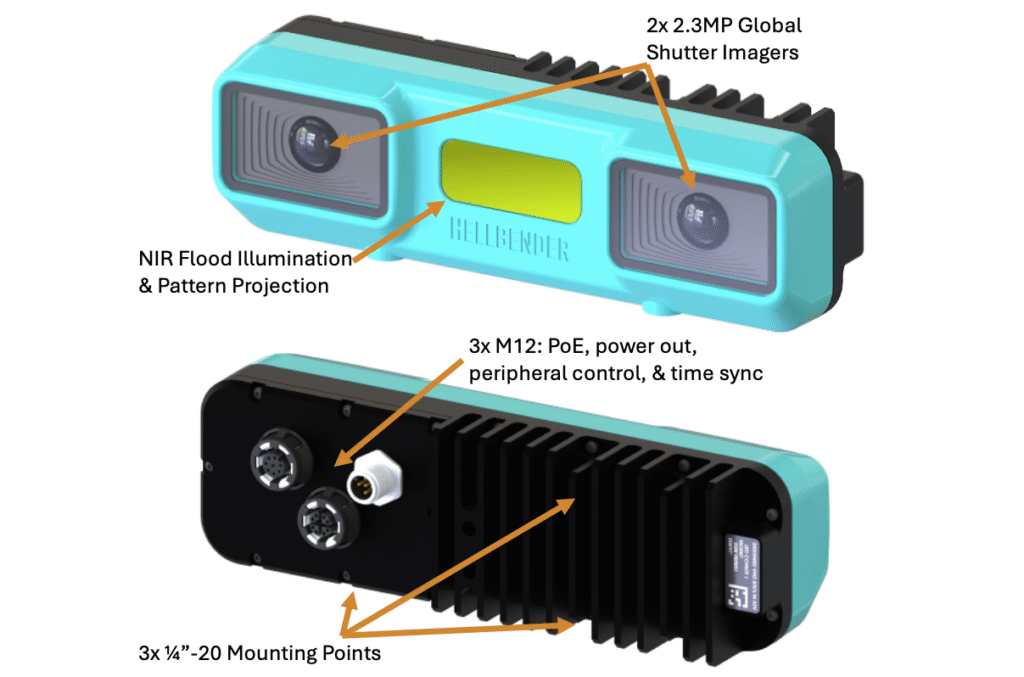

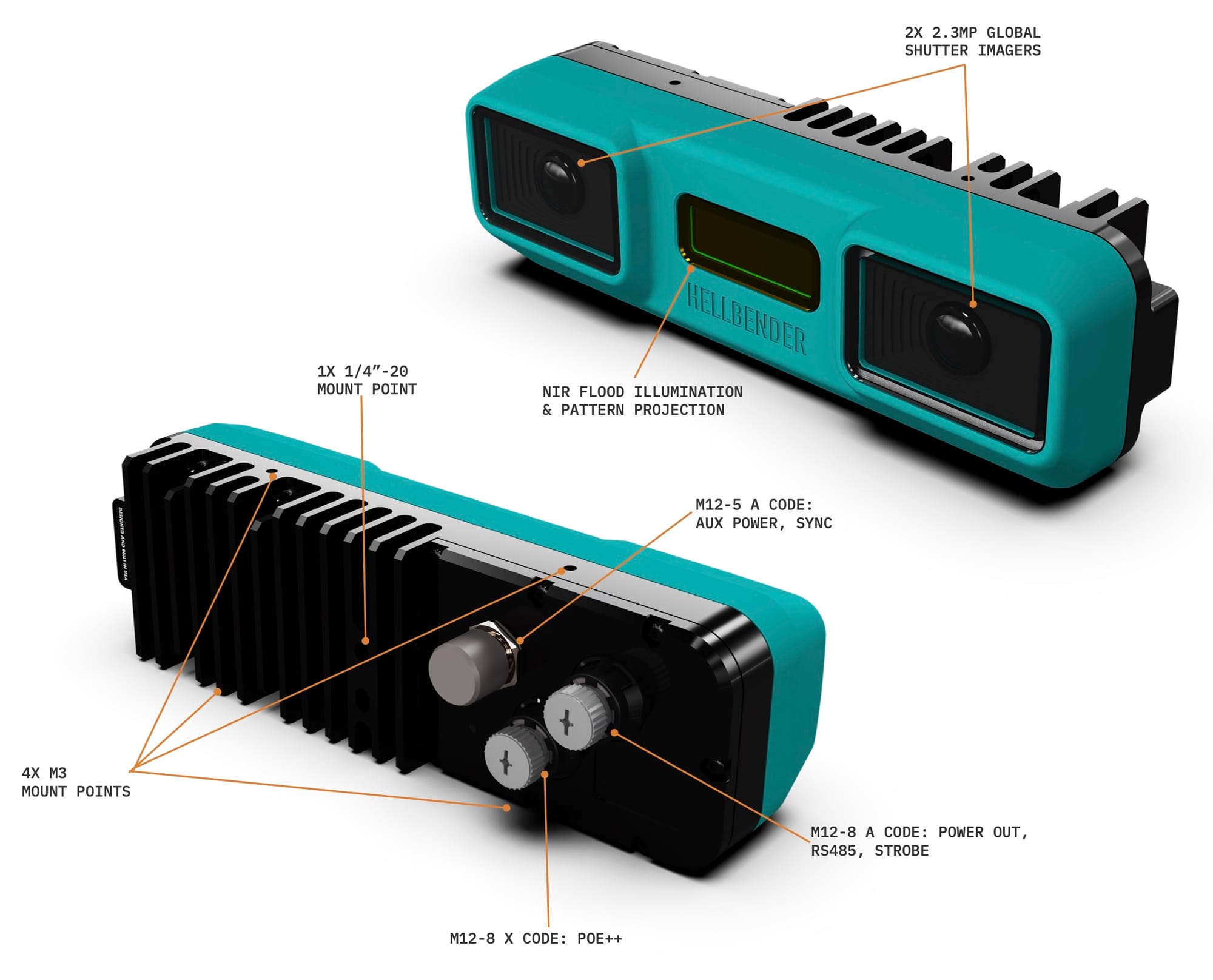

Feature Diagram

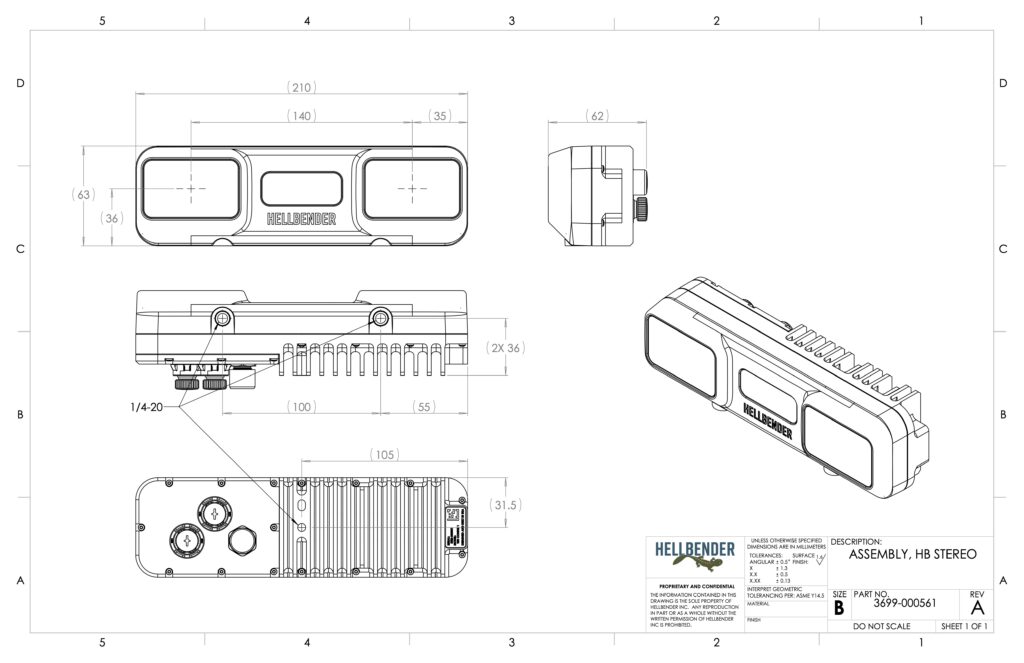

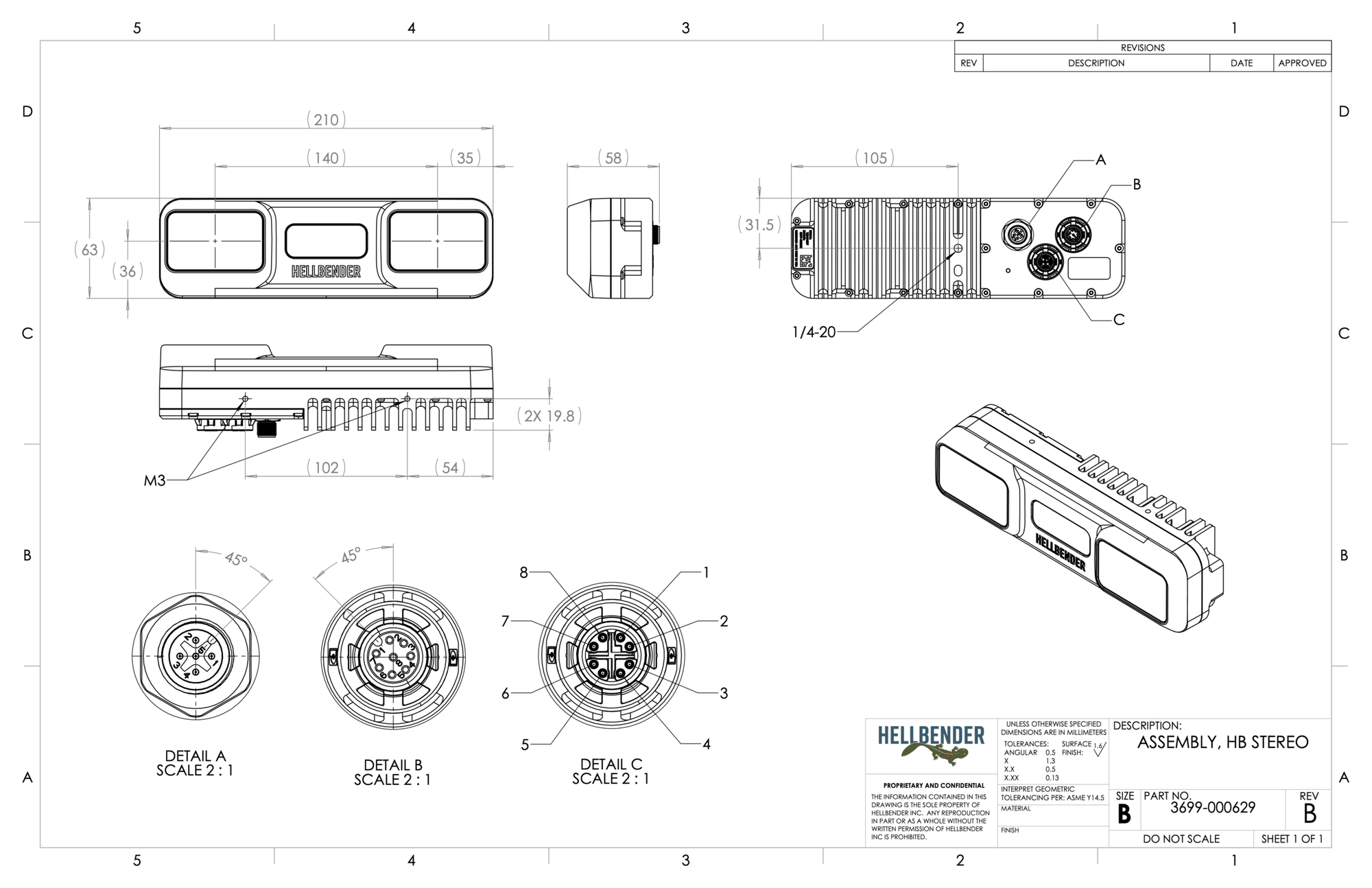

Dimensional Drawing
Operation Notes
WARNINGS
- This product should only be connected to an external power supply rated for 8-26VDC.
- The RTC coin cell can use rechargeable or non-rechargeable Li-ion cells, however for the Orin NX it must be a non-rechargeable cell that is used.
- This product should be operated in a well-ventilated environment, and if used inside a case, the case should have appropriate cooling capabilities or else not be sealed.
- This product should be placed on a non-conductive surface in use and should not be contacted by conductive items.
- The connection of incompatible devices to the various connectors may affect compliance and result in damage to the unit and invalidate the warranty.
- All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met.
SAFETY INSTRUCTIONS
To avoid malfunction or damage to this product please observe the following:
- Do not expose to water, moisture, or place on a conductive surface while in operation.
- Avoid mechanical or electrical damage to the printed circuit board and connectors.
- Avoid handling the printed circuit board while powered and only handle the edges to minimize the risk of ESD.
